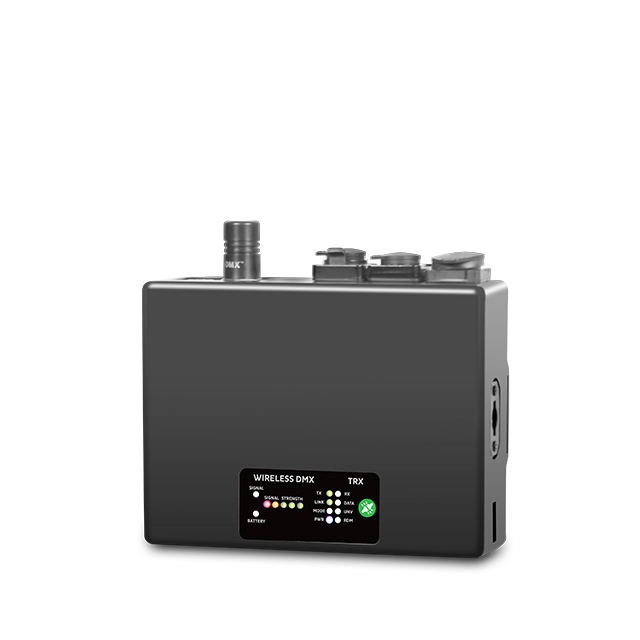

AW01 WIRELESS DMX TRX

5 0 Reviews
Availability:

2 (2)BP1A9793BP1A9802

Input protocols:

DMX 512 and RDM ANSI E1.20 (2)

DMX Structure:

1 universes per device

Number of DMX channels:

512 channels

DMX latency:

< 5 ms

Max.Universes in coexistence:

32

W-DMX G3 & G4S compatibility:

2.4 GHz,5.2 & 5.8 GHz (1)

Standard range:

Up to 700 meters (line of sight)

Normal Power Mode 2.4 GHz:

100mW

Maximum Power Mode 2.4 GHz:

Up to 450mW

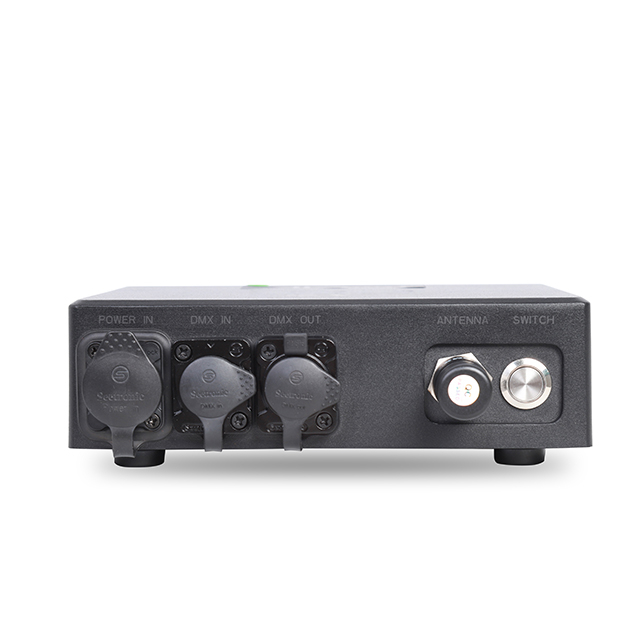

DMX Connectors:

3 pin input and output

DC Input:

2-pole DC 12V 2A power supply

Supplied Accessories:

3dBi, white, omi-directional antenna

and phoenix connector

Charge time:

2.5H

Dischage time:

88H @TX,440H@RX
Net Weight:

1.2KG

Packed Dimensions:

W x D x H: 245 x 160 x 45 mm

STANDARD ACCESSORIES


9fa145d26f8eea5c3bfc0d14800ff64


电源线

Power Cord

STANDARD

QTY: 1PCS

信号线

Dmx Cable

STANDARD

QTY: 1PCS

魔术贴

The magic stick

STANDARD

QTY: 1PCS


OPTIONAL ACCESSORIES


9fa145d26f8eea5c3bfc0d14800ff64


快速锁1/4 Turn Fast Lock

OPTIONAL

QTY: 1PCS

20210127140313_3653090

Safety Wire

OPTIONAL

QTY: 1PCS

信号延长线2

Signal Extension Cord

OPTIONAL

QTY: 1PCS
