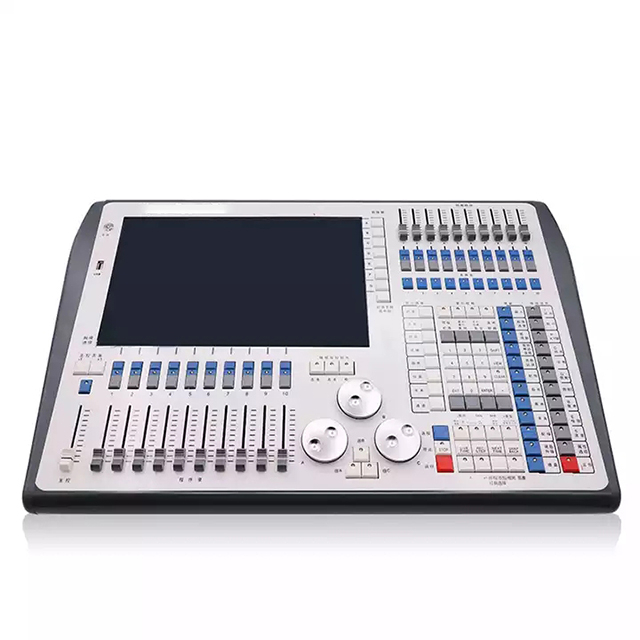

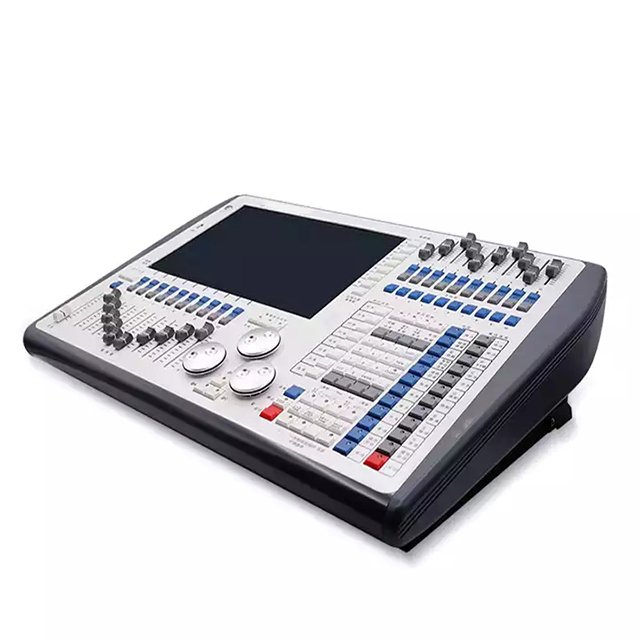

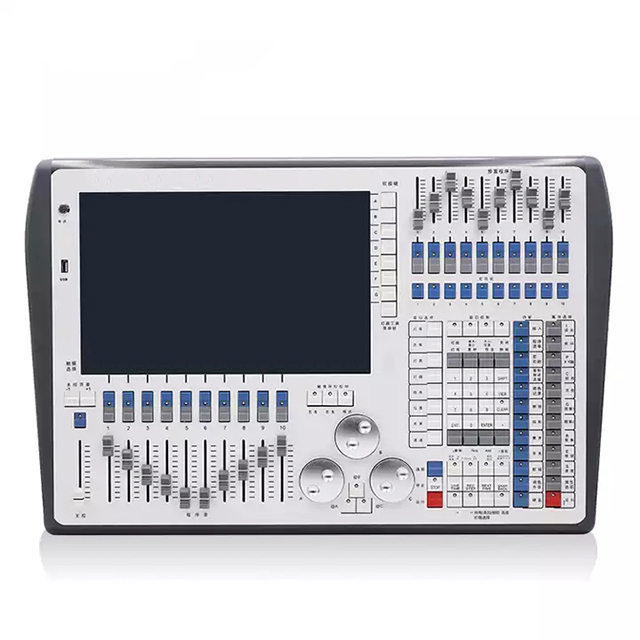

Lighting Console 1r Beam Moving Head Light DMX 512 Light Controller

5 0 Reviews

Powerful scene control site
The new intuitive operating system titan Widescreen responsive interface, full touch screen, Chinese / English interface Built-in
15.4-inch bright touch screen,
and can be extended a 17-inch touch screen Art-Net extended support, supports a total of 12 channels DMX interfaces -6144
20 Scenes and Chaser Master More than 1,000 virtual replay Fully compatible with pearl experts show files 10 macro buttons and
macro library
Artnet Avotalk and citp Protocol Support CITP protocol support multimedia material More than 1,000 of the world mainstream
lighting fixture library and built Personality Builder light library to write software TITAN free operating system upgrade
Built-stage simulation software free Visualiser


AC100-240V, 50/60Hz


Powerful Titan PC Suite v11.0 and v11.1 double version of the operating system


I5 fourth-generation processor



Hard disk:

120G/240G SSD


15.4-inch high quality HD touch screen
(external 17 inch touch screen is available for option.)

Signal support:

Artnet, DMX512

Channel quantity:

Console itself 4/8/12 DMX output ports 2048/4096/6144 DMX channels

Art-Net network:

Support Art-Net network, can be extended to 12 DMX outputs and 6144 channels


Englis/Chinese and built-in multi-language

Macro botton:

10 macro buttons, you can edit any program

Reproducing putt:

20 the reproducing putt, support 1000 virtual reproduction

CMY palette function:

Have strong CMY palette function

Playback fader:

10 replay faders, support 1000 virtual replays

Graffiti handwriting naming function:

Support graffiti handwriting naming function

CITP protocol:

Support CITP protocol, can preview the built-in materials of the server or digital lights

Built-in light libraries:

Thousands of light libraries, and built-in light library editing software

Visualiser visual stage simulation software:

Built-in visualiser visual stage simulation software, support video

MIDI time code control:

Player time code built-in,to be easily edited by lighting show.

UPS power supply:

Power supply may be about 40 minutes, to prevent a sudden power loss or system damage procedures

Wi-Fi access:

Support ,wireless control lights, mobile devices (iPhone, iPad) remote control lighting;
