44Pcs*20W 4In1 Rgbw Leds Rgbw 4In1 Outdoor Lights

5 0 Reviews
AH036 is a wall washer based on super high power 800W LED and magnesium alloy, with 44*20W 4 in 1 RGBW LED light source, not only used for architectural decorative lighting, but also a symbol of urban lighting.

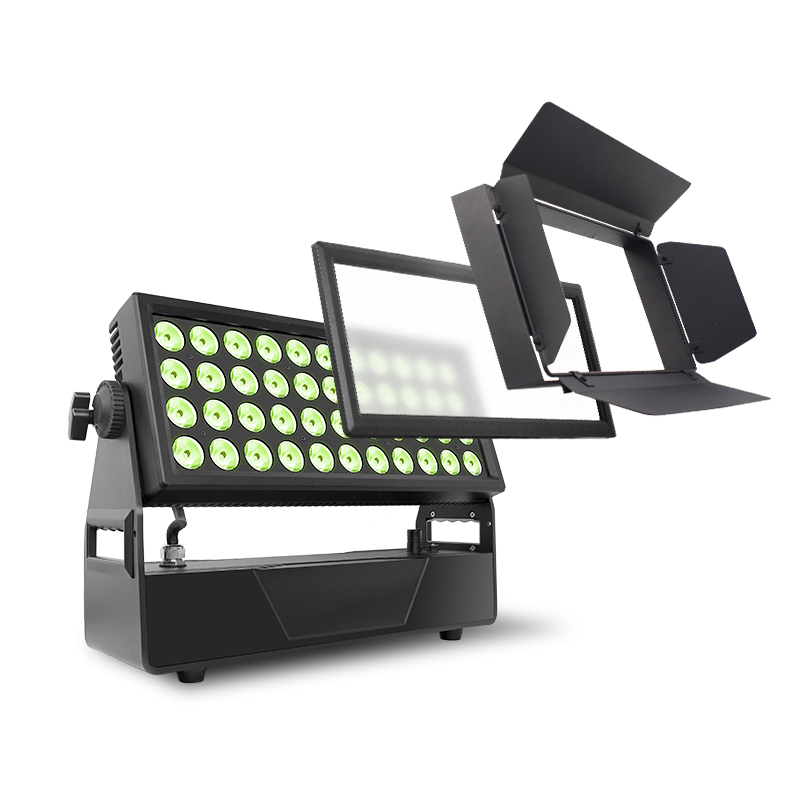

AH036 with magnet atomizing sheet, various angles can be selected, barndoor concentrating light

AH036 supports DMX, RDM (remote device management), Art-Net protocol (optional), built-in wireless solution wireless system (optional).

The application of AH036 is not limited. It can be placed in any outdoor environment such as buildings, bridges, etc.

  • AH036

  • ATON

Availability:
Inquire

PRODUCT CHARACTERISTICS
5

AH036 with magnet atomizing sheet, various angles can be selected, barndoor concentrating light

3

High-power fan, large air volume, fast heat dis-sipation.  prevent lamp beads from burning out

21 Using high-power power supply, the output powerflow is stable, noise reduction, energy saving, andlow consumption.
APPLICATION SCENARIO

High-bright lamp beads, full-color dyeing, powerfulatmosphere effect, suitable for various places

audience-gde8814bdd_1920 Stage

The auxiliary light of the concert illuminates the background

bfbecfcd6a8a42cdbe90f4bccb59f52d_tplv-mlhdmxsy5m-q75_0_0 Wall Washing

Make the walls of the house dyed, wall lighting

wedding light, wedding lights, lighting Wedding

Wedding lighting, auxiliary light atmosphere foil

130002_n91083373 Landscape Lighting

Shine on the scene and stain the scene at night

PRODUCT EFFECT
20W RGBW LED light
IMG_0560 IMG_0562 IMG_0563 IMG_0564


Led44pcs * 20W 4 in 1 RGBW LEDsTilt0 - 220°
Lens15° optional 40°Power Supply UnitAuto-ranging electronic switch-mode
Magnetic frost filter15,25,45,60,60*10 degreeColor optionsB lack sand coat painting
LED lifetime50,000 hoursCoolingActive, Forced Air, Temperature-regulated
Voltage90 - 264V 50/60HzTemperature Range-40°C to 55°C
Max power800 WThermal ProtectionAutomatic overtemperature protection
Cabled DMX5 pin XLR input/outputMounting point

2 x 2 quarter-turn locking points for  one or two Omega brackets

ControlRDM, DMX 512 & Wireless DMXSafety featuresB ottom mount for safety wire
Color temperature2000K - 10000KDisplay and SettingOLED display / 4 buttons
CRI85WaterproofIP65
Light output24821 lmLens materialPE and tempered glass front
Lux84308 lux @ 2mMaterialMagnesium alloy
DMX channels3, 4, 6, 8, 9 or 10Dimensions586 x 209.9 x 333.5 mm
DimmingElectronicNet weight8kg
StrobeUltra-high-speed strobe effects


H)NA21C5FCKSTVLQ51


PTXVOX%8UQQBTNZO_`ZJX

STANDARD ACCESSORIES


9fa145d26f8eea5c3bfc0d14800ff64


电源线

Power Cord

STANDARD

QTY: 1PCS

信号线

Dmx Cable

STANDARD

QTY: 1PCS

防水盖

Waterproof Cover

STANDARD

QTY: 1PCS


OPTIONAL ACCESSORIES


9fa145d26f8eea5c3bfc0d14800ff64


45度

Flight Case

OPTIONAL

QTY: 1PCS

灯勾

Clamps

OPTIONAL

QTY: 1PCS

搬斗1

Barndoor

OPTIONAL

QTY: 1PCS



雾化片1

Magnetic Frost Filter

OPTIONAL

QTY: 1PCS

快速锁

 1/4 Turn Fast Lock

OPTIONAL

QTY: 1PCS

20210127140313_3653090

Safety Wire

OPTIONAL

QTY: 1PCS



download AH036 user manual.pdf
