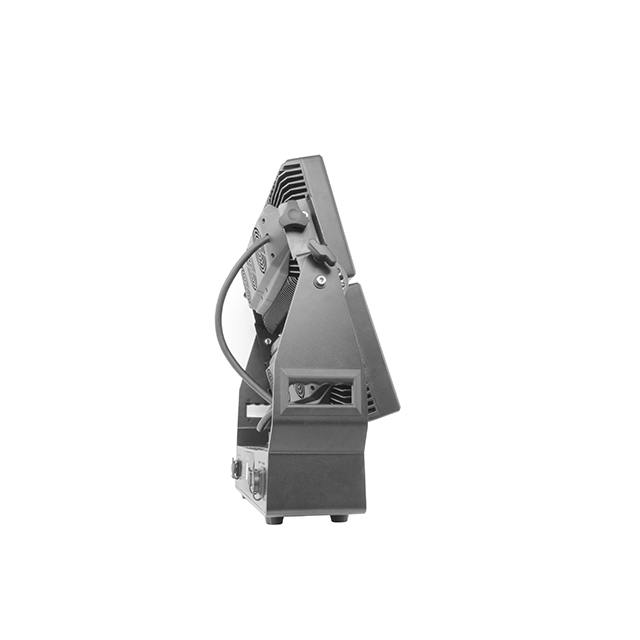

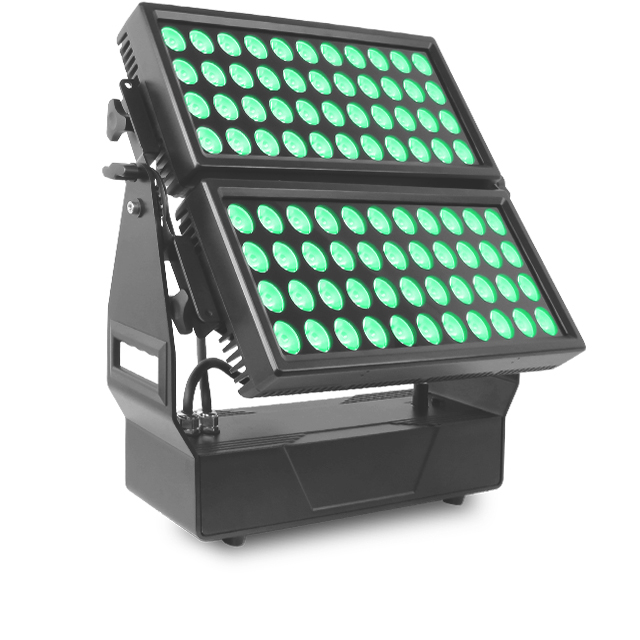

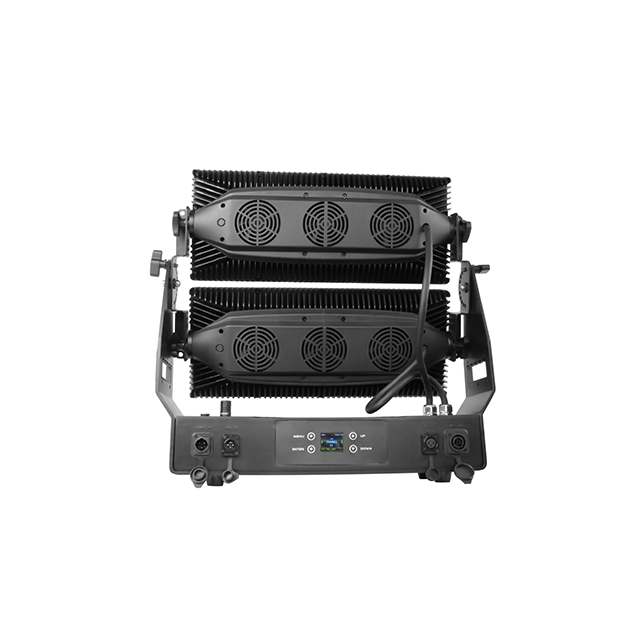

AH036D Outdoor High Power LED 88x20W RGBW 4in1 Wall Washer City Color Light

5 0 Reviews
AH036D is a wall washer based on super high power 1600W LED and magnesium alloy, with 88*20W 4 in 1 RGBW LED light source, not only used for architectural decorative lighting, but also a symbol of urban lighting.

AH036D with magnet atomizing sheet, various angles can be selected, barndoor concentrating light

AH036D supports DMX, RDM (remote device management), Art-Net protocol (optional), built-in wireless solution wireless system (optional).

The application of AH036D is not limited. It can be placed in any outdoor environment such as buildings, bridges, etc.
Availability:
Inquire


Led88pcs * 20W 4 in 1 RGB W LEDsTilt0 - 220°
Lens15° optional 20°Power Supply UnitAuto-ranging electronic switch-mode
Magnetic frost filter15,25,45,60,60*10 degreeColor optionsB lack sand coat painting
LED lifetime50,000 hoursCoolingActive, Forced Air, Temperature-regulated
Voltage90 - 264V 50/60HzTemperature Range-40°C to 55°C
Max power1600 WThermal ProtectionAutomatic overtemperature protection
Cabled DMX5 pin XLR input/outputMounting point

2 x 2 quarter-turn locking points for

one or two Omega brackets

ControlRDM, DMX 512 & Wireless DMXSafety featuresB ottom mount for safety wire
Color temperature2000K - 10000KDisplay and SettingOLED display / 4 buttons
CRI85WaterproofIP65
Light output40031 lmLens materialPE and tempered glass front
Lux146000 lux @ 2mMaterialMagnesium alloy
DMX channels2, 3, 4, 9 & 12 CHDimensions625 x 430 x 437 mm
DimmingElectronicNet weight24.9kg
StrobeUltra-high-speed strobe effects



STANDARD ACCESSORIES


9fa145d26f8eea5c3bfc0d14800ff64


电源线

Power Cord

STANDARD

QTY: 1PCS

信号线

Dmx Cable

STANDARD

QTY: 1PCS

防水盖

Waterproof Cover

STANDARD

QTY: 1PCS


OPTIONAL ACCESSORIES


9fa145d26f8eea5c3bfc0d14800ff64


45度

Flight Case

OPTIONAL

QTY: 1PCS

灯勾

Clamps

OPTIONAL

QTY: 1PCS

搬斗1

Barndoor

OPTIONAL

QTY: 1PCS



雾化片1

Magnetic Frost Filter

OPTIONAL

QTY: 1PCS

快速锁

 1/4 Turn Fast Lock

OPTIONAL

QTY: 1PCS

20210127140313_3653090

Safety Wire

OPTIONAL

QTY: 1PCS



download AH036D user manual.pdf
