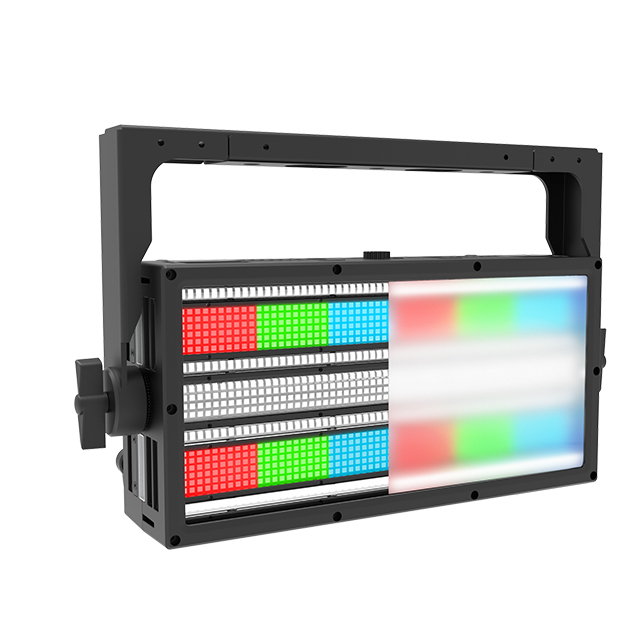

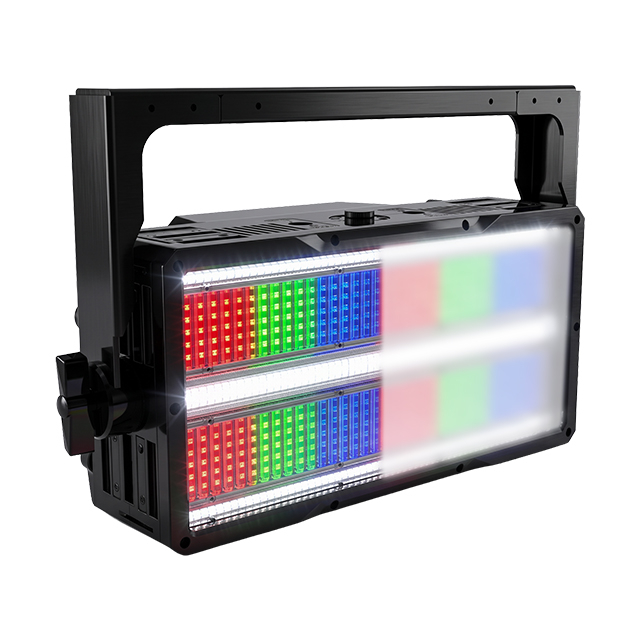

THUNDERCLUSTER 612*CW+680*RGB Blinder Light, High Brightness Stage Effect Blinder Light for DJ Disco Concert Live Show Stage Lighting

5 0 Reviews
The THUNDERCLUSTER 612*CW+680*RGB Blinder Light is a professional high-brightness LED stage lighting fixture. It features excellent RGB and CW color mixing, supporting DMX512 control, sound activation, and master-slave modes. Low power consumption and stable performance make it ideal for concerts, DJ shows, bars, weddings and various indoor stage atmosphere lighting scenarios.

  • AH048B

Availability:
Inquire

1-2-_01

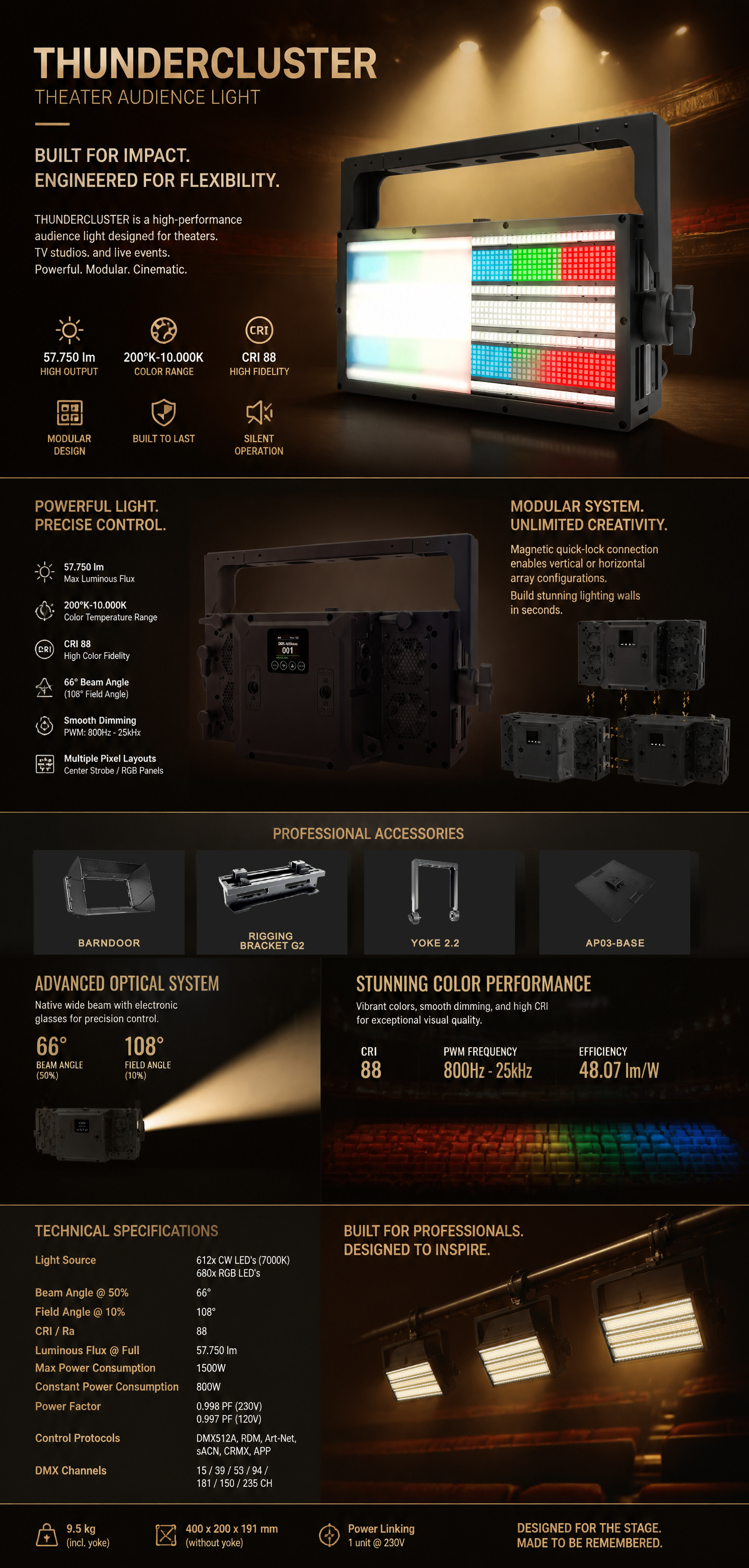

THUNDERCLUSTER
THEATER AUDIENCE LIGHT
BUILT FOR IMPACT.

ENGINEERED FOR FLEXIBILITY.

THUNDERCLUSTER is a high-performance
audience light designed for theaters.
TV studios. and live events.
Powerful. Modular. Cinematic.
1-2-_02
POWERFUL LIGHT.
PRECISE CONTROL.
57.750 Im
Max Luminous Flux
200K-10.000K
Color Temperature Range
CRI 88
High Color Fidelity
66° Beam Angle
(108° Field Angle)
Smooth Dimming
PWM:800Hz-25kHx
Multiple Pixel Layouts
Center Strobe/RGB Panels
MODULAR SYSTEM. UNLIMITEDCREATIVITY.
Magnetic quick-lock connection enables vertical or horizontal array configurations.Build stunning lighting walls in seconds.
1-2-_03
1-2-_04
ADVANCED OPTICAL SYSTEM
Native wide beam with electronic
glasses for precision control.
66°
BEAMANGLE
(50%)
108°
FIELD ANGLE
(10%)
1-2-_05
STUNNING COLOR PERFORMANCE
Vibrant colors, smooth dimming, and high CRI
for exceptional visual quality.
CRI
88
PWMFREQUENCY
800Hz-25kHz
EFFICIENCY
48.07 Im/W
1-2-_06
TECHNICALSPECIFICATIONS

Light Source:612x CW LED's (7000K) 680x RGB LED's

Beam Angle @ 50%:66

Field Angle @ 10%:108°

CRI/Ra:88

Luminous Flux @ Full:57.750 Im

Max Power Consumption:1500W

Constant Power Consumption :800W

Power Factor:0.998 PF (230V) 0.997 PF (120V)

Control Protocols:DMX512A,RDM,Art-Net,sACN,CRMX,APP

DMXChannels:15/39/53/94/181/150/235 CH

1-2-_07
9.5 kg
(incl. yoke)
400x200x191mm
(without yoke)
Power Linking
1 unit @ 230v
DESIGNED FOR THE STAGE.
MADE TO BE REMEMBERED.
Previous:
Next:
High Brightness RGB CW Blinder Stage Lighting for Live Events THUNDERCLUSTER 612*CW+680*RGB Blinder Light Professional Stage Blinder Light DMX512 Controlled Audience Blinder Light High Brightness Stage Strobe Light RGB CW LED Stage Effect Light Sound Activated Stage Blinder Light Multi-Functional Stage Matrix Light High CRI Stage Performance Light Low Power Consumption Stage Atmosphere Light

Related Products

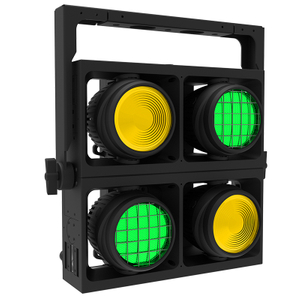

Hot Sale THUNDER FOUR 4300W Red+Amber+WW Blinder Light for Concert Stage
Hot Sale THUNDER FOUR 4X400W RGBLA Blinder Light for Concert Stage

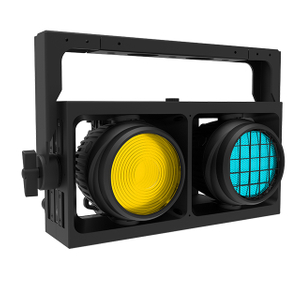

THUNDER TWO 2*300W Red+Amber+WW Blinder Light for Stage Effect
