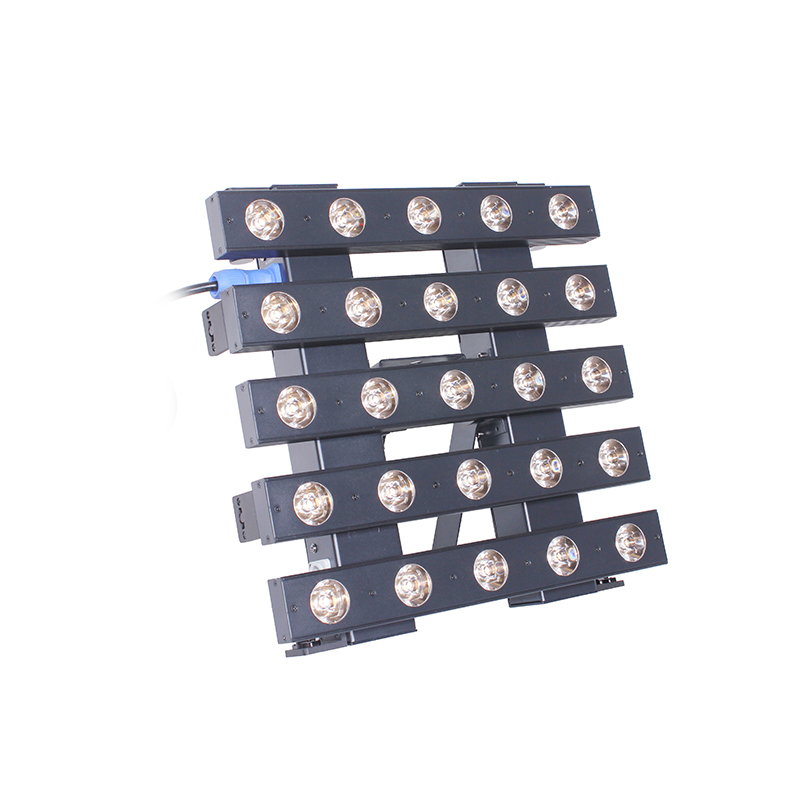

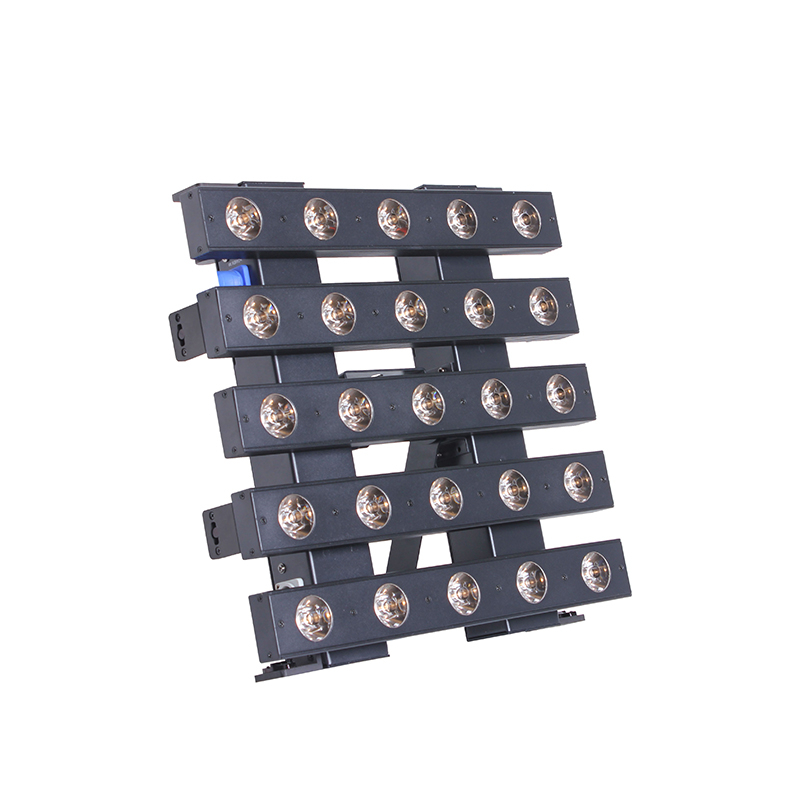

25*3W CREE XPE white leds Mini Matrix White stage light

5 0 Reviews

The Matrix Panel 25*3W Warm WHITE 2800K LED has been designed by transferring the many needs of the live entertainment world in the indoor club entertainment industry, letting the occasional and non-occasional user to approach the “pixel to pixel” control with a pair of innovative 5×5 matrices, easy to use and install.

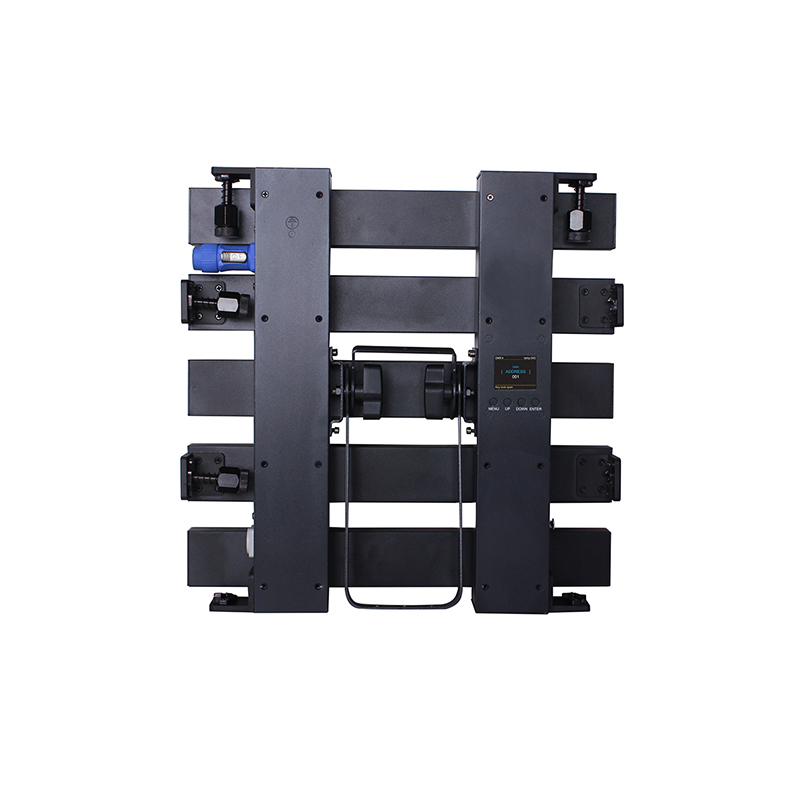

The optics, conceived with a beam projection angle of 5°, is equipped with an anti-reflection DC (dark cover) optical insulation system which ensures a precise and defined pixel effect, without any internal reflection interfering in the light effect. For an ultra easy-to-use experience, many macros have been included, which can be recalled via DMX with graphic pixel effects such as letters of the alphabet and numbers. A colour LCD display features an intuitive software interface, a black aluminium body with “fast lock” hardware for the connection of the modules ensures low weight and perfect alignment between the pixels.

Model:
AH046B
Brand:
ATON

Availability:



Inquire

Led:	25*3W, CREE XPE white leds	Pixel control:	Each LED controlled separately
Lens:	5°	Material:	Aluminum body
Lux:	14850 lux @ 2m distance	Displayer:	TFT displayer with four buttons
Power:	90W	Install:	Fast Lock for easy installation
Voltage:	100V -240V, 50/ 60Hz	Cabinet Colour:	Black
DMX channels:	1, 2, 5 & 25 CH	Locking:	Key lock for buttons
Run Mode:	DMX 512 /Master Slave /Auto Run/ Sound Active	Type:	Indoor
DMX Input/ Output:	XLR 3-Pin Male / XLR 3-Pin Female	Waterproof:	IP20
DMX Function:	Auto, STAT COLOR, Sound Active, Strobe, Dimmer, Color macro	Temperature:	-30℃~ 45℃
B uilt-in Effect:	color mixing, variable color chasing, strobing and fading	N.W:	6.47 KG
Dimensions:	399.5 x 102 x 399 mm	G.W:	6.77 KG
