A Powerful Tool for Stage Lighting: Analyzing the High-Performance 64*8W RGBL LED Light

In today's stage arts and performances, lighting has long transcended its simple function of "illumination." It is both a brushstroke for rendering emotions and a sculptor for shaping spaces. A high-performance lighting device can completely transform the visual landscape of a performance. Today, we will delve into a professional stage lighting fixture that combines high brightness, precise light control, and powerful flexibility, seeing how it becomes an indispensable creative partner for lighting designers.

I. Core Brightness and Color: Laying the Foundation for Visual Effects

The core of this lighting fixture lies in its powerful light source system: 64 8W RGBL four-in-one LED chips. This means it not only possesses the three primary colors of red, green, and blue, but also adds an independent Lime LED. This design greatly enhances color reproduction and saturation, especially enabling the mixing of purer, more vibrant intermediate colors and more realistic skin tones, making it equally effective in creating a vibrant rock atmosphere or a tranquil theatrical scene.

With a total luminous flux of 10937 lumens and a luminous efficacy of 72.3 lm/W, it ensures that energy is efficiently converted into visual impact. Actual illuminance data shows:

· @2m: 3085 Lux

· @5m: 490 Lux

· @10m: 122 Lux

This means that in small to medium-sized theaters or music festival stages, even from 10 meters away, it can still provide a clear and bright beam, ensuring that actors and scenery remain the focus of attention. A color temperature of up to 12000K (at full brightness) produces an extremely cool white light, piercing the darkness like a sword, with exceptional visual penetration.

II. Precise Optical Control: Infinite Possibilities from Beam to Pattern

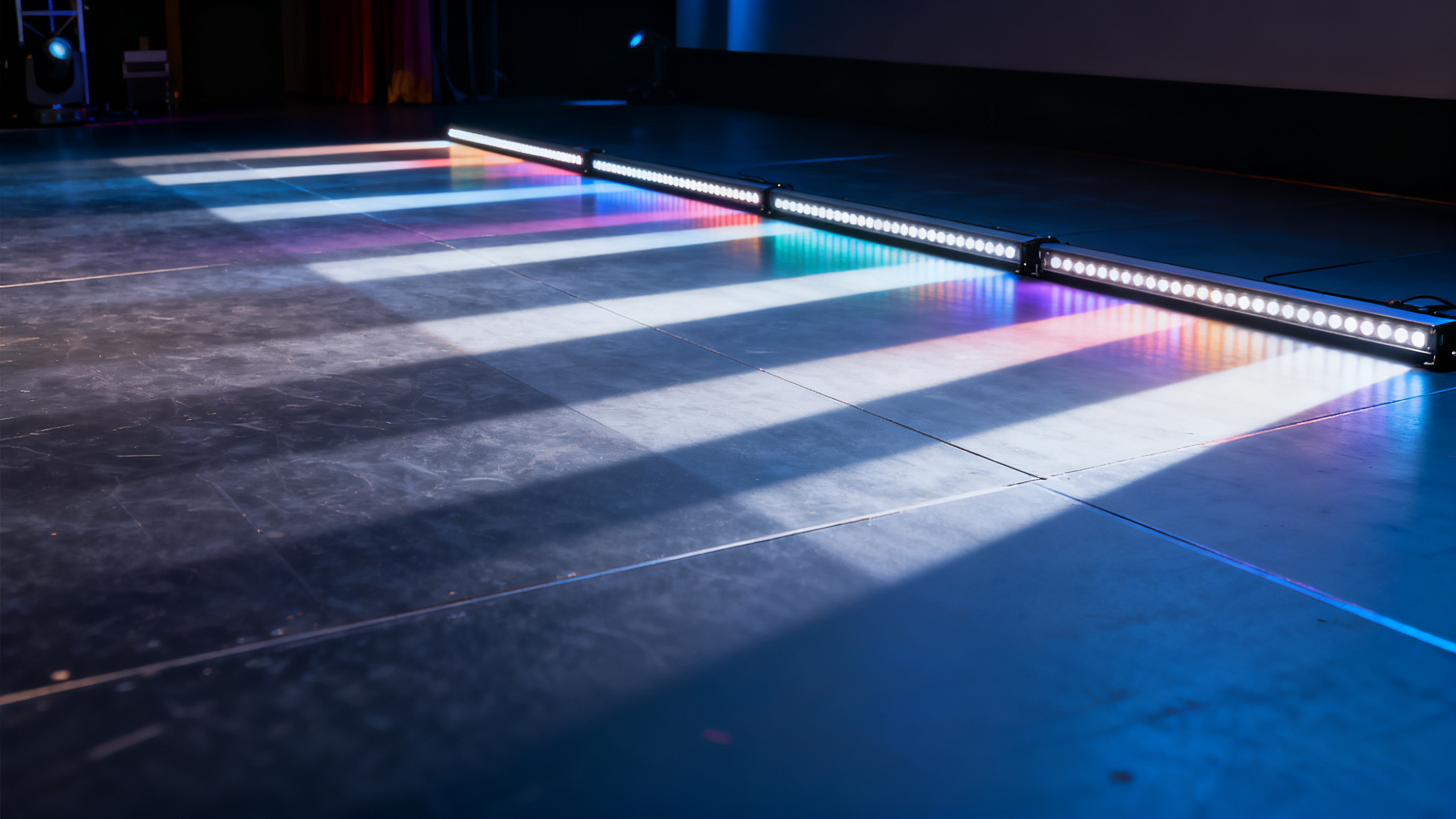

The true charm of this luminaire lies in its precise control of light. It employs the AP04 elongated lens optical system, achieving a unique 60° x 20° native beam angle. This elongated beam shape is inherently designed to create highly dynamic walls of light, curtains of light, and ground light strips.

Even more impressive is its initial field of view (spot angle) of 85° x 25°. This design allows the light fixture to project a wide and uniform spot of light from a very close distance to the curtain or wall, significantly saving installation space and providing greater flexibility for stage design.

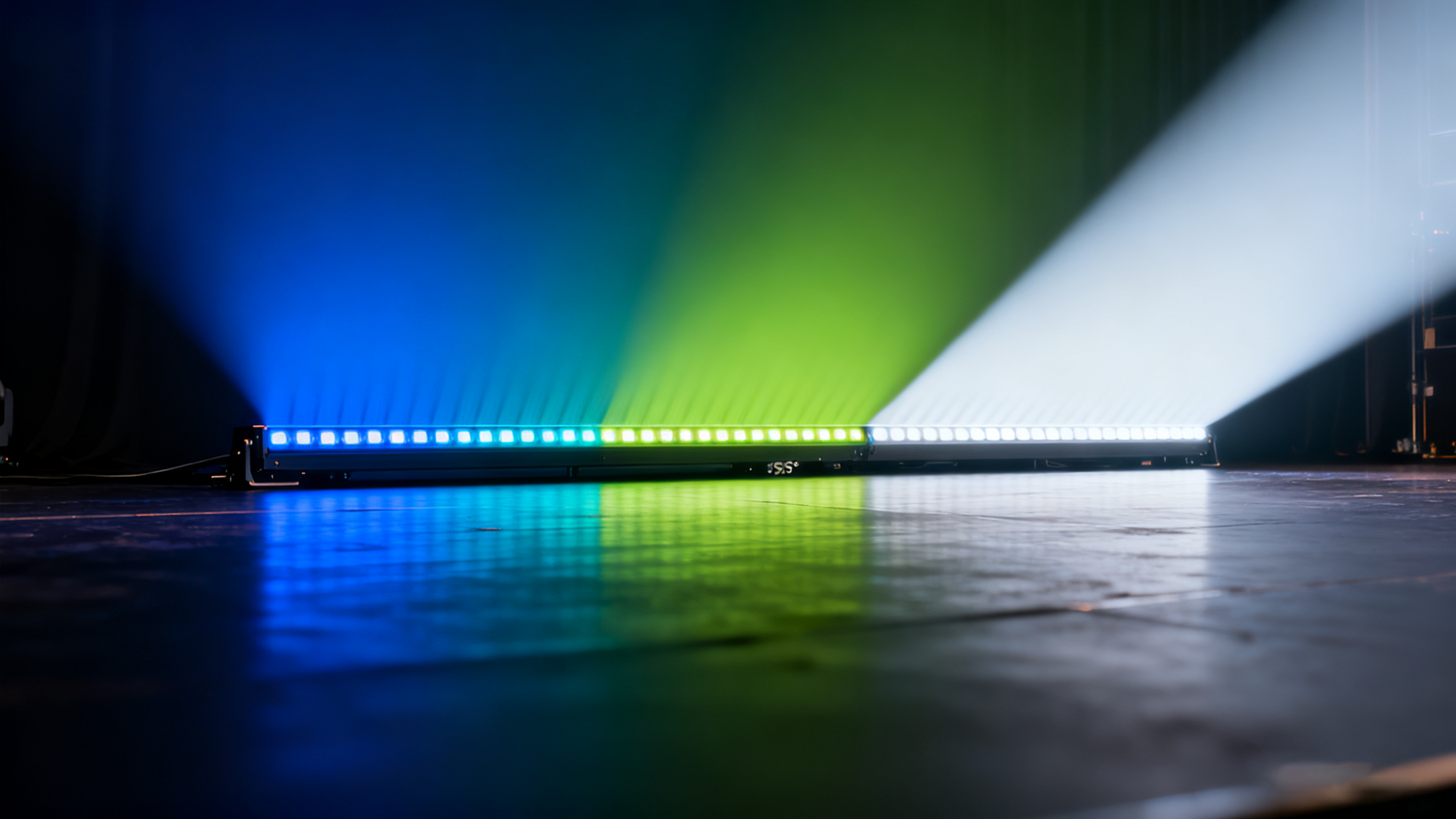

Through 16-pixel zone control, lighting designers can divide this light strip into 16 independent segments, programming the color and brightness of each segment independently. This enables it to achieve complex dynamic effects such as flowing light and chasing motion, with a single light creating a rhythmic visual element.

III. Intelligent Control and Reliable Performance: Meeting Any Performance Challenge

In terms of control, this light fixture offers a comprehensive solution:

· Multiple Operating Modes: Supports the standard DMX512 protocol, master-slave synchronization mode, and 10 built-in automatic programs to meet the different needs of fixed installations and mobile performances.

· Wireless Future: Built-in wireless DMX receiver system from Sweden, eliminating cumbersome cables and making installation and adjustment more convenient than ever before.

• Precise Control: Offers four different dimming curves, allowing lighting designers to precisely control the transition from dark to bright based on the mood of the performance. The 0-20Hz adjustable strobe function delivers a range of effects from gentle flickering to powerful, thunderous rhythms.

• Efficient Management: Supports up to 66 independent ID settings, meaning that in large systems, up to 66 lights can be easily grouped and individually controlled, resulting in extremely high management efficiency.

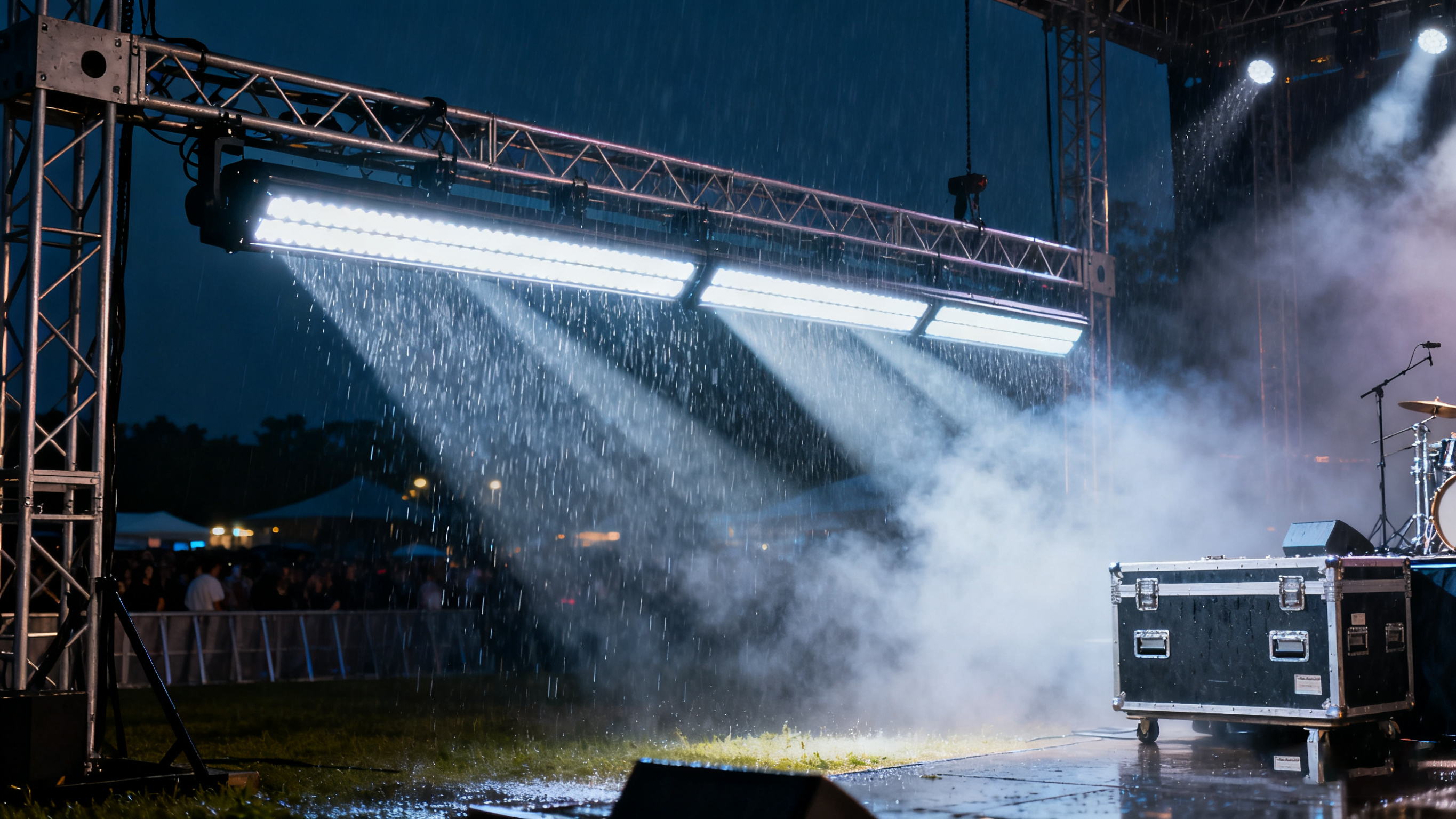

In terms of reliability, its IP65 protection rating ensures it can withstand dust jets and low-pressure water jets, operating stably in both indoor touring smoke effects and outdoor humid weather. Its wide operating temperature range of -40℃ to 45℃ makes it suitable for extreme environments from frigid to scorching. Despite its powerful features, its compact, elongated design (1005mm x 174mm x 140mm) and weight of 7.5kg make it relatively easy to hoist and transport.

In conclusion, this LED light, combining high-brightness RGBL light source, precise elongated optical system, intelligent pixel control, and robust protection, is more than just a lighting fixture; it's a powerful visual creative platform. With its superior specifications and flexible performance, it offers lighting designers and stage directors limitless possibilities and is poised to become the secret weapon for creating the next classic performance.
