The landscape of outdoor performance lighting has undergone a revolutionary transformation in recent years. As audiences demand more immersive and visually captivating experiences, event organizers and lighting designers are increasingly turning to LED wall washer lights as their primary solution for background illumination. These versatile fixtures have evolved from simple architectural lighting tools into sophisticated stage elements capable of creating dynamic, emotion-driven atmospheres that synchronize perfectly with live performances.
In 2025, the convergence of sustainability mandates, AI-driven lighting control, and wireless technology has positioned LED wall washers as the cornerstone of modern outdoor concert production. Whether illuminating massive festival stages or intimate amphitheater performances, these fixtures offer unparalleled flexibility, durability, and creative potential that traditional PAR cans and floodlights simply cannot match.
This comprehensive guide explores why professional lighting designers are specifying RGBW and RGBWA LED wall washers for outdoor entertainment venues, examining everything from waterproof IP65 ratings to pixel-mapping capabilities that enable real-time audience interaction.
LED wall washer lights are high-output linear or rectangular lighting fixtures designed to "wash" large surface areas with smooth, uniform illumination. Unlike directional spotlights that create concentrated beams, wall washers distribute light broadly across vertical planes, making them ideal for:
Stage backdrops and scenic elements
Building facades and architectural features
Tent ceilings and temporary structures
Audience area perimeter lighting
Band shells and orchestra pits
Modern stage-specific wall washers utilize RGBW (Red, Green, Blue, White) or RGBWA (plus Amber) LED configurations, enabling millions of color combinations without gels or filters. When deployed as background lighting, these fixtures create depth, dimension, and mood-transforming color palettes that respond dynamically to musical cues.

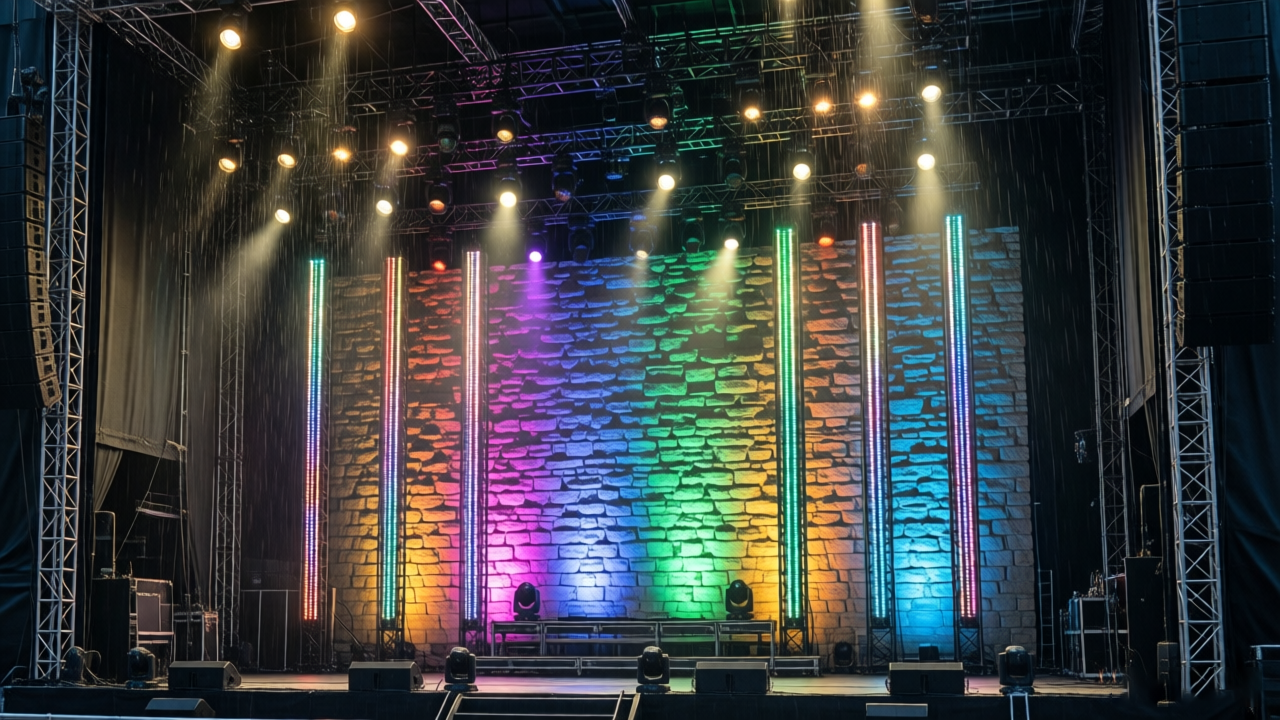

The latest trend in concert production emphasizes total audience immersion. LED wall washers facilitate this by transforming static backdrops into living canvases. When arrayed in vertical columns or horizontal rigs behind performers, these fixtures create seamless color gradients that extend the stage's visual boundary into the surrounding architecture.
Advanced pixel control capabilities allow individual LED nodes to be addressed separately, enabling chase effects, wave patterns, and real-time video mapping that traditional wash lights cannot achieve.
Outdoor performances present unique challenges: unpredictable precipitation, dust, and temperature fluctuations. Professional-grade wall washers for outdoor use feature IP65, IP66, or IP67 waterproof ratings, ensuring reliable operation during rainstorms or high-humidity conditions.
Robust aluminum housings with tempered glass lenses protect internal components from environmental stressors, while sealed cable glands prevent moisture ingress at connection points—critical for multi-day music festivals where equipment remains exposed for extended periods.
As the events industry embraces eco-conscious production practices (a non-negotiable standard in 2025), LED wall washers offer compelling advantages:
80% reduction in power consumption compared to traditional halogen or HMI fixtures
Minimal heat output, reducing cooling requirements and fire hazards
Mercury-free operation and recyclable aluminum construction
Compatibility with solar-powered and battery-backed generator systems
These sustainability credentials help events achieve ISO 20121 certification while significantly reducing fuel costs for mobile power generators.
Modern RGBWA fixtures deliver CRI (Color Rendering Index) values exceeding 90, ensuring natural skin tones for performers while maintaining saturated architectural colors. Through DMX512 or RDM (Remote Device Management) protocols, lighting designers can:
Program complex cue sequences synchronized with musical BPM
Adjust color temperature from warm amber (2700K) to daylight (6500K)
Implement smooth dimming curves without flicker for broadcast cameras
Control individual fixtures or grouped arrays via wireless CRMX transmitters
When specifying LED wall washers for outdoor performances, professional lighting directors prioritize these specifications:
Zoom Range: 10°–60° adjustable beam angles allow flexibility between tight emphasis and broad washes
Luminous Flux: 10,000–25,000 lumens for competing with stage spotlights and daylight conditions
Color Consistency: 3-step MacAdam ellipse binning ensures uniformity across multiple fixtures
IP Rating: Minimum IP65 for dust/water jet protection; IP67 for temporary submersion scenarios
Operating Temperature: -20°C to +50°C (-4°F to 122°F) for extreme climate compatibility
Impact Resistance: IK08 rating protection against accidental impacts during load-in/load-out
Power: True1 PowerCON or powerCON TRUE1 TOP connectors for weather-safe daisy-chaining
Data: 5-pin XLR or Ethernet-based Art-Net/sACN for network control
Mounting: Dual yoke brackets with Omega clamps for truss mounting or ground stacking
The integration of Artificial Intelligence into lighting control systems represents 2025's most significant technological leap. AI-powered wall washer arrays now analyze audio waveforms in real time, automatically generating complementary color schemes and movement patterns without manual programming.
Cutting-edge productions utilize wearable sensors on performers to transmit heart rate and movement data to lighting controllers. Background wall washers then pulse and shift colors in direct response to the artist's physical state, creating subconscious emotional connections with audiences.
Motion-tracking cameras and smartphone app integrations enable background lighting to react to crowd energy levels. During high-intensity moments, wall washers might flash crimson and white; during ballads, they transition to slow-moving deep purple waves—each response uniquely generated by collective audience behavior.
For optimal background washing, fixtures should be positioned 1.5–2 times the height of the surface being illuminated, aimed at 45-degree angles to minimize hot spots. When lighting fabric backdrops, maintain minimum 6-foot (2-meter) distances to prevent heat transfer (even with cool-running LEDs) and fabric movement from air currents.
Outdoor stages require GFCI (Ground Fault Circuit Interrupter) protection for all lighting circuits. Calculate total wattage including 20% headroom for voltage fluctuations, and distribute loads across multiple phases to prevent generator imbalance.
Use SOOW-rated (Service Oil-Resistant Outdoor Weather-resistant) cables for all exterior connections. Elevate data cables minimum 10 feet above ground to prevent audience tripping hazards, and employ cable ramps with yellow visibility markings for cross-traffic areas.
For festivals in exposed locations, ensure flying arrays of wall washers are rated for calculated wind speeds. Secure fixtures with safety bonds (minimum 10:1 working load ratio) and consider wind-sensitive automated lowering systems if forecasts predict gusts exceeding 35mph.
Large-scale productions like Coachella and Glastonbury utilize hundreds of meters of LED wall washers to transform temporary structures into architectural landmarks. The fixtures create "color-coded" stage identities—electronic dance music stages pulse with saturated RGB magentas and cyans, while folk stages utilize warm white washes with subtle amber accents.
Regional theater companies touring outdoor venues benefit from wall washers' ability to simulate natural environments. A forest scene might use gobos combined with green wall washes; sunset transitions can be achieved by slowly cross-fading from cool daylight to warm 2700K tones over 30-minute cues.
Automotive and tech companies increasingly host outdoor reveal events where wall washers bathe stage backdrops in brand-specific Pantone colors. The consistency of LED color mixing ensures accurate brand representation across photography and live streaming platforms.
Opening ceremonies for international competitions employ weatherproof wall washers to illuminate stadium architecture, creating cohesive visual identities that translate beautifully to broadcast cameras while withstanding stadium lighting heat and environmental exposure.
To maximize ROI on LED wall washer investments:
Post-Event Cleaning: Remove dust and debris with soft cloths and isopropyl alcohol; avoid pressure washers that could compromise seals
Connection Inspection: Check PowerCON and XLR connectors for corrosion monthly; apply dielectric grease to pins in coastal/humid environments
Firmware Updates: Modern RGBWA fixtures receive DMX personality updates via USB or wireless—keep control libraries current for compatibility with new consoles
Thermal Monitoring: While LEDs run cooler than tungsten, enclosed outdoor fixtures in direct sun can overheat—ensure intake/exhaust vents remain unobstructed
As outdoor performances continue pushing creative boundaries, LED wall washer technology evolves in tandem. The shift toward sustainable, IP65-rated, AI-controllable background lighting reflects broader industry demands for environmentally responsible production without sacrificing visual impact.
For lighting designers, rental houses, and venue managers, investing in high-quality RGBW/RGBWA wall washer systems represents a strategic decision that pays dividends through reduced energy costs, minimal maintenance requirements, and vastly expanded creative palettes. In 2025's competitive entertainment landscape, generic frontlighting is no longer sufficient—audiences expect 360-degree immersive environments where background lighting serves as an active storytelling element rather than passive illumination.
By mastering the technical specifications, installation techniques, and emerging AI integration capabilities outlined in this guide, production professionals can deliver outdoor performances that resonate emotionally while meeting the stringent sustainability and safety standards of modern event production.
