20W 4in1 RGBW & 6in1 Amber+Lime+Cyan LED Battery Dragon - Lighting Versatility

5 0 Reviews
The ATON AB028 20W Single-Source LED,with battery and an IP66 outdoor rated par fixture featuring 1x20W RGBW 4in1 or RGB, Amber
+ Lime+cyan 6in1 LED,combining unique effects with a smooth and uniform dimming range can creative a programming with multiple
effects.
With a compact and lightweight case,unique and clever LED module design,Built-in Multiple splicing style.The fixture also provides a rich
variety of stunning automated programs for standalone or wireless master-and-slave operation. In addition to RDM and standard DMX
capability,for maximum versatility it boasts a built-in 2.4 GHz W-DMX™ transceiver by lumenradio for convenient wireless control,and direct
control via the app or 2.4G Bluetooth control, without additional hardware, allows for incredibly smooth and wireless operation.Magnetic
diffusers providing a choice of 25°, 45°, 60° x 10° beam angles and Multiple splicing are available as dedicated accessories.
With colour temperature, four selectable dimming curves and fully adjustable halogen lamp-like dimming response, the fixture is the perfect
tool for highly professional lighting.It is one of the best representatives of performance level.
Multidirectional splicing and Fast connection is recognized by market fleetly when it was lunched. It is already becoming the superior option
for many professional lighting designers and exhibition technicians. Our permanent mission is to continuously provide customers with
innovation, AB028 is it was born to meet with the increasingly diverse needs of customers.
  • AB028

  • ATON

Availability:
Color calibrationLED expected lifetime50000H
Light source1*20W RGBW
Native lens options10°
Optional filters20°
CTO3000/3500/4000/4500/5000/6000/7000/8000/9000/10000K
CRI67
Battery working time @ auto7H
Battery charging time4.5H
Color calibration0-255
DimmingLinear/Square Law 1/Square Law 2/Square Law 3
Filters20°
Strobe0-20HZ adjustable
Tilt360°
Input voltage,absolute max. RatingDC 18V-DC 20V
Input voltage,nominal100V - 240V 50/60HZ
Max inrush current 230V ACMax.30A
Max power consumption42W
LED PWM Frequency600/1.2K/2.4K/4.8K/12K/18K(HZ)
Efficacy16.08 lm/W
DMX channels2/HSV/5/8/11/15CH
DMX modes6
ProtocolDMX,RDM,2.4G remote,wireless control
Wireless DMXOptional CRMX or Chinese wireless
Maximum number of light connections50
Power input/output connectorsM8,4 PIN input M8,4 PIN output
Chassis ColorBlack - RAL 9004
IK ratingIK07
IP classIP66
MaterialAluminum/PC/ASA/Rubber/Tempered Glass
Net dimensions120*117*163mm
Net weight1.48kg


ACCESSORIES

9fa145d26f8eea5c3bfc0d14800ff64

17

ACCESSORIES

Power cord

European double head

 1.5m*0.75mm

适配器

ACCESSORIES

adapter

AC:110V-240V

Power: 100W

2.4G遥控

ACCESSORIES/CONTROLLERS

2.4G controller

There is a controlled distance of

50 meters

较链组合板

ACCESSORIES

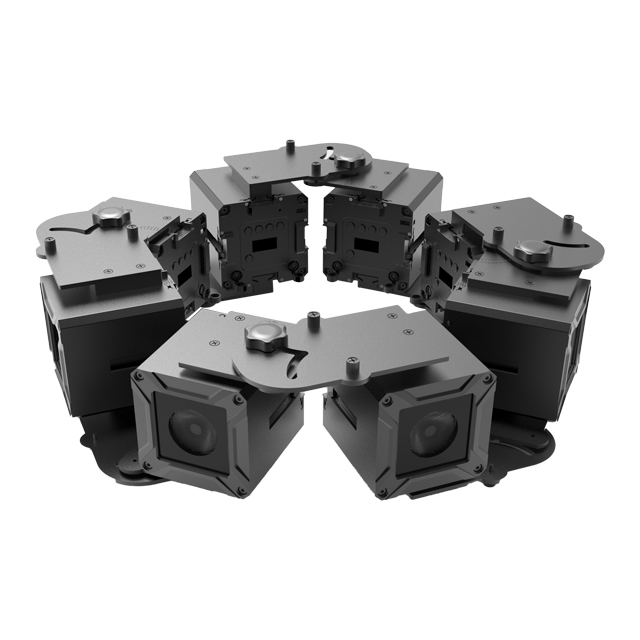

Hinged panel

Used for continuous splicing

环形连接板

ACCESSORIES

Ring connecting plate

After use, it can be spliced into a circle

磁吸帽

ACCESSORIES

Magnetic cap

Let the lamps have atomization effect

AB01航空箱

ACCESSORIES

Flight Case

Mobile multifunctional aviation case can be charged

ABS航空箱

ACCESSORIES

Charging case

Protective case with dedicated space for most accessories that enables in-case charging

AW01

ACCESSORIES/CONTROLLERS

WIRELESS DMX TRX

Wireless transmission box

3

ACCESSORIES

magnetic frost filter

Let the lamps have atomization effect

4

ACCESSORIES

connector

Make multiple lamps linked together

7

ACCESSORIES

Hanging plate

Fixed luminaire with quick lock

20210127140313_3653090

ACCESSORIES

Safety Wire

Attach the lamp to the bracket to ensure that the lamp will not fall

快速锁

ACCESSORIES

1/4 Turn Fast Lock

Hanging upside down and fixed on the lamp stand

16

ACCESSORIES

Signal line

Fixed luminaire with quick lock

14

ACCESSORIES

Round tube 50cm

After use, the light of the lamp is like a lamp tube

15

ACCESSORIES

Round tube 100cm

After use, the light of the lamp is like a lamp tube

AP03

ACCESSORIES

Square base

Make multiple lamps linked together



Versatility Unmatched


Our LED Battery Dragon is the epitome of versatility.  With a powerful 20W RGBW 4in1 lighting system, you can create a multitude of color combinations to suit any mood or setting.  Whether it's a vibrant party atmosphere or a cozy, intimate ambiance, our lighting is ready to adapt.

AB028-2


Innovative 6in1 Color Spectrum


Take your lighting to the next level with our 6in1 Amber+Lime+Cyan LED system.  This unique feature allows for a broader spectrum of colors, including the rarely seen Lime and Cyan shades, ensuring that your lighting stands out from the crowd.



Portable Outdoor Lighting


Designed for portability, our LED Battery Dragon is the perfect companion for outdoor events.  Whether you're setting up a campsite or organizing a backyard party, this battery-powered lighting solution is easy to set up and even easier to carry around.



Battery Powered Convenience


Say goodbye to the hassle of cords and outlets.  Our lighting system is fully battery operated, providing you with the freedom to place your lights wherever you need them without worrying about power sources.



Multi-Color Lighting Effects


Create the perfect ambiance with our multi-color lighting effects.  From soft pastels to bold primary colors, our LED system offers a wide range of hues to match any occasion or personal preference.



Outdoor Light Powerhouse


Our LED Battery Dragon is more than just a light source;  it's a powerhouse of illumination.  With its high output and battery life, it's perfect for outdoor events that require long-lasting, powerful lighting.


BP1A3051
BP1A3080
BP1A3193



Easy Setup and Use


Setting up your lighting has never been easier.  Our system is designed for quick and easy installation, ensuring that you can have your lighting ready in no time, even in the most challenging outdoor conditions.

AB028配件


Versatile Lighting System


Use our lighting system in a variety of settings, from home decor to commercial displays.  The 20W RGBW 4in1 & RGB Amber+Lime+Cyan 6in1 LED Battery Dragon is the ultimate versatile lighting solution for any occasion.



Innovative LED Technology


At the heart of our product is cutting-edge LED technology, ensuring that you receive the highest quality light output with minimal energy consumption.  Our LED lights are not only bright but also eco-friendly.



Dynamic Lighting Duo


Pair the 20W RGBW 4in1 with the 6in1 Amber+Lime+Cyan system for a dynamic lighting duo that can transform any space.  Whether you're looking to create a specific color theme or simply want to experiment with different lighting effects, our system has you covered.



Conclusion: Your Lighting Partner

The "20W RGBW 4in1 & RGB Amber+Lime+Cyan 6in1 LED Battery Dragon Versatile Lighting Powerhouse" is more than just a lighting product;  it's your partner in creating memorable moments and illuminating your world in a way that's both functional and visually stunning.  Experience the future of lighting today with our innovative and versatile LED system.


IMG_5317
IMG_5307
IMG_5336
