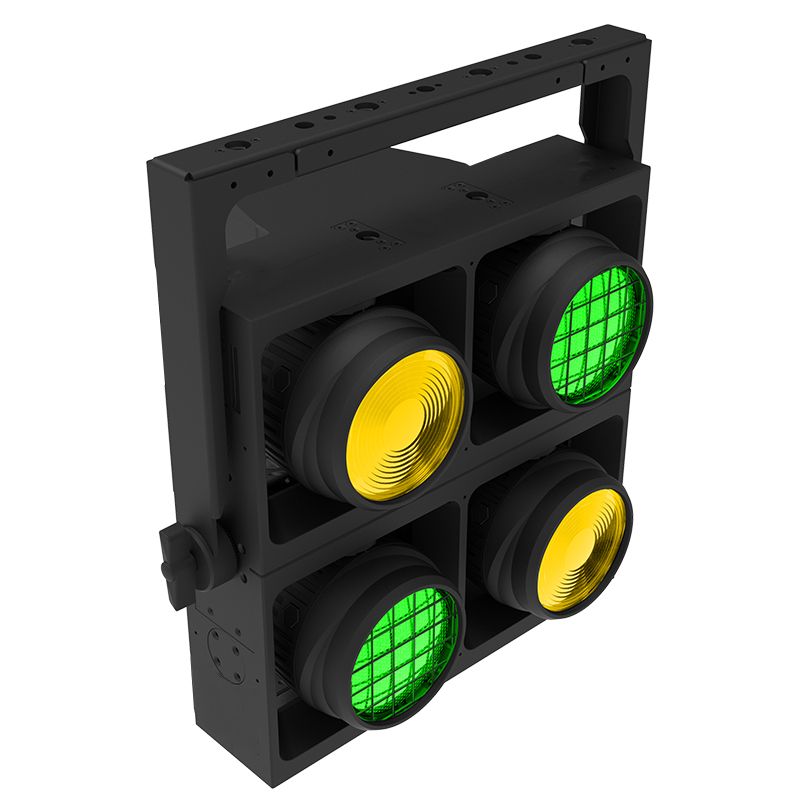

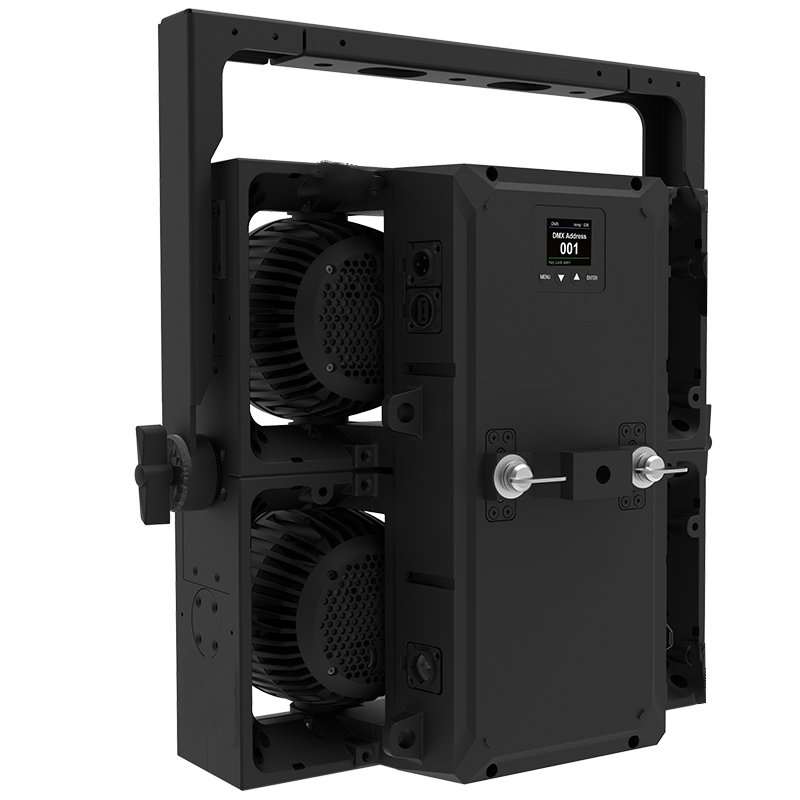

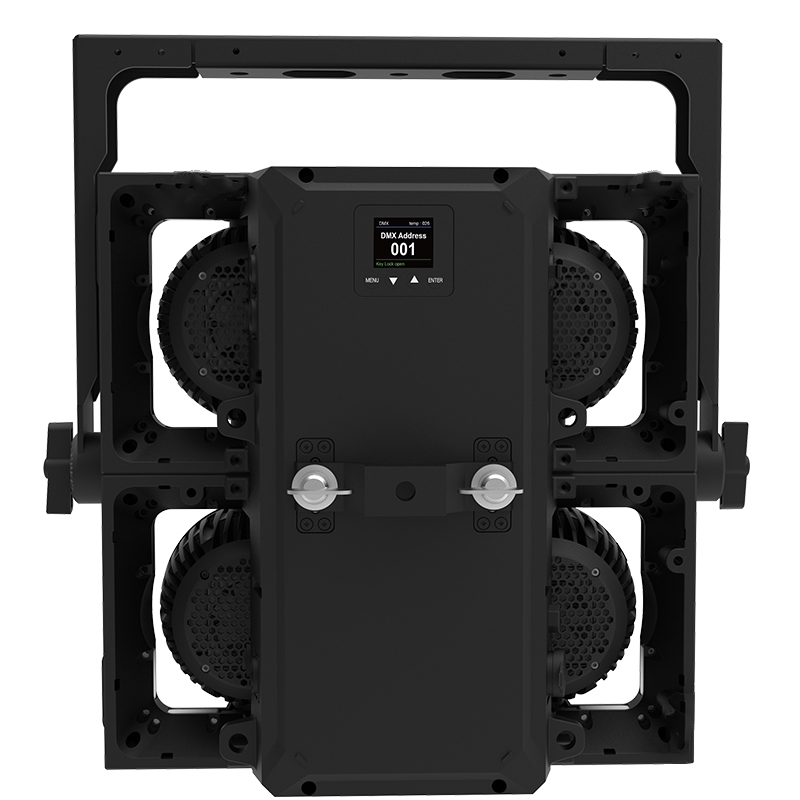

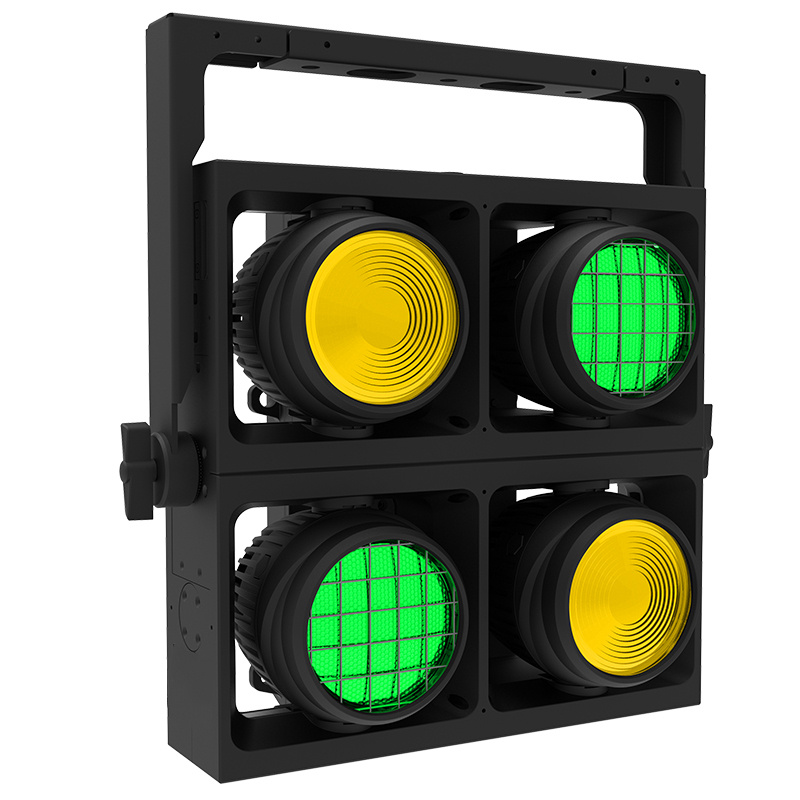

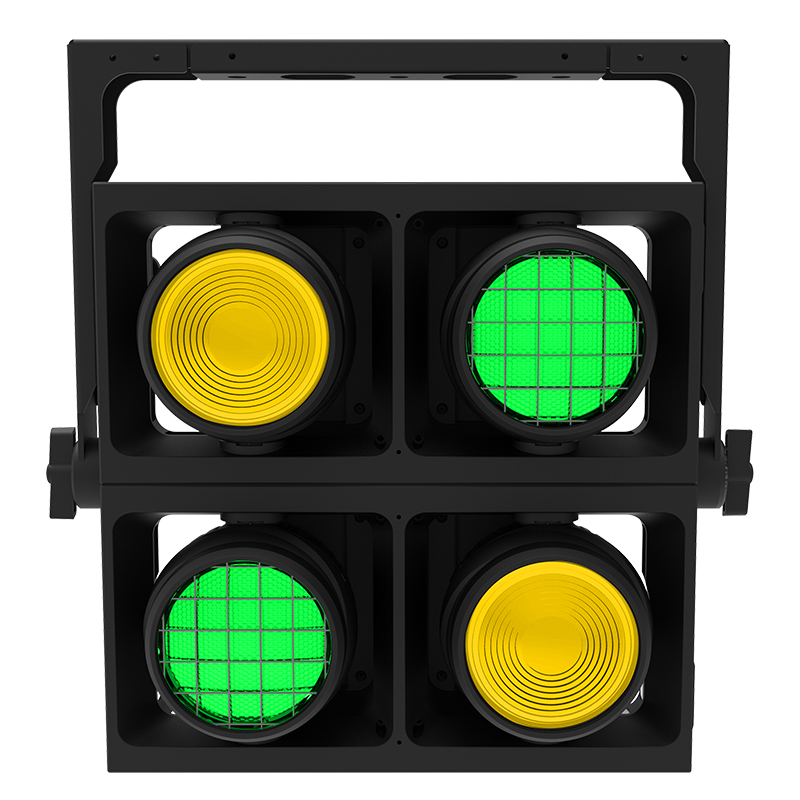

The THUNDER FOUR 4*300W LED Blinder Light is a professional stage lighting solution. With red, amber, and warm white colors, it delivers intense brightness andeven light distribution. Ideal for concerts, theaters, and events, it offers high - quality illumination and reliable performance, meeting various stage lighting needs.
AH034
ATON
| LED expected lifetime | 50000H |
| Lightsource | Main Led(4*300W Red+Amber+WW) |
| Auxiliary Led | 4*24*2W CW+WW |
| Type of optical system | Fresnel lens, reflector |
| Color Temperature (at full) | 2860K |
| CRI | 85 |
| LED PWM | 1KHz ~ 18KHz |
| Efficacy | 112lm/w |
| Light output all LEDs on | 80038 LM |
| Light output warm white | 73681 LM |
| Light output red | 1513 LM |
| Light output amber | 5530 LM |
| Lux @ 2m | 23688 lx |
| Lux @ 5m | 3790 lx |
| Lux @ 8m | 1480 lx |
| Lux @ 10m | 928 lx |
| Native beam angle(s) | 50° |
| Initial field of view (spot angle) | 93° |
| Color options | Black-RAL 9004 |
| IK rating | IK07 |
| IP class | IP65 |
| Material | Aluminium |
| Net dimensions | 495*499*203mm |
| Net weight | 17.87kg |
| Color calibration | 127-255 |
| Dimming curve | Linear / Square Law /Inverse Square Law / S-Curve |
| Dimmer | 0-255 |
| Emulation mode / effect | yes |
| LED panel | Main Led(4*300W Red+Amber+WW) |
| Auxiliary Led | 4*24*2W CW+WW |
| Strobe | 0-20Hz |
| Tilt | Light head 40° whole light 360° |
| Screen reversal function | the screen can be reversed |
| Segment control | 36 segments |
| Indicator | LCD |
| Electrical protection | (O.L.P)/ (SHORT)/(O.V.P):V1:43~48V/(O.T.P):N2>110±10℃ /Input over/under protection:>=75VAC |
| Input voltage, absolute max. Rating | 100~240VAC 47~63Hz |
| Input voltage, nominal | 100 - 240V 50/60Hz |
| AC Power max | 1400W |
| AC Power nominal | 800W |
| Total power | 1400W |
| Max power consumption | 1400W |
| Constant power consumption | 800W |
| Power factor | 0.96 (@230V) |
| Power Max.Out | 1400W |
| Standby power consumption | 25W |
| Maximum Connections | 2 pcs @220V |
| 16-bit control | yes |
| Cabled DMX | 3 pin |
| DMX channels | 1/4/4D/7/10/13/18/P8/P16/P32/P64/P68/P74/P77 |
| DMX modes | 14 |
| Protocol | USITT DMX512A, RDM ANSI E1.20 |
| Setting and addressing | Manual settings at the display buttons/RDM |
| Controls | touchscreen button |
| USB Firmware Update | External Bluetooth module/wireless DMX |
| DMX data in/out | Seetronic-3PIN waterproof DMX output(K3F2C-W-B)/input(J3F2C-W-B) |
| Power Connection | Seetronic-waterproof Power input(SAC3MPX-LY)/output(SAC3FPX) |
| Power Input/Output Connector | Seetronic-Waterproof Power Supply Output Black-SAC3FX |
| Cable Length (power) | European single head waterproof power cable (H0R07) 1.5m*2.5mm² |
| Cable Length (DMX) | 3 pin waterproof DMX cable, L=65CM |
| Max output power | Input: 6A@220VAC / Output: 4A@12V / 20A@48V |
