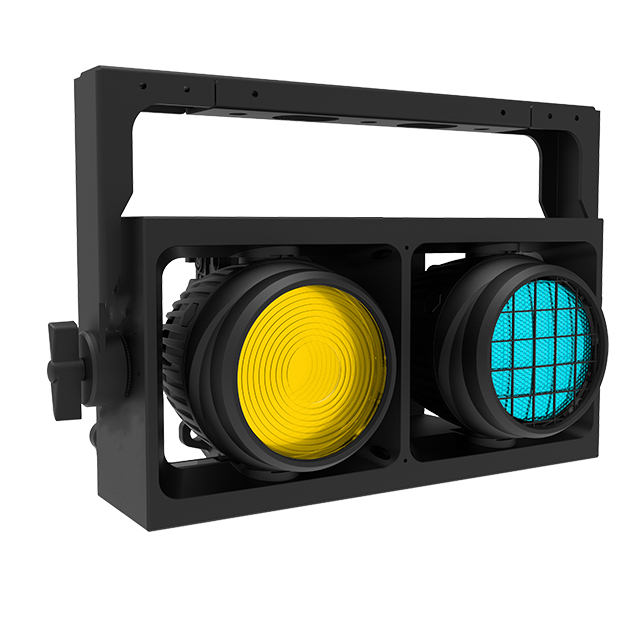

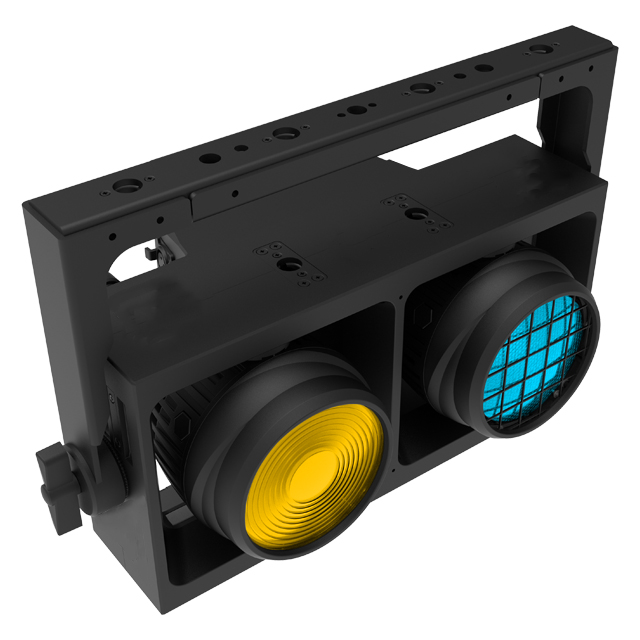

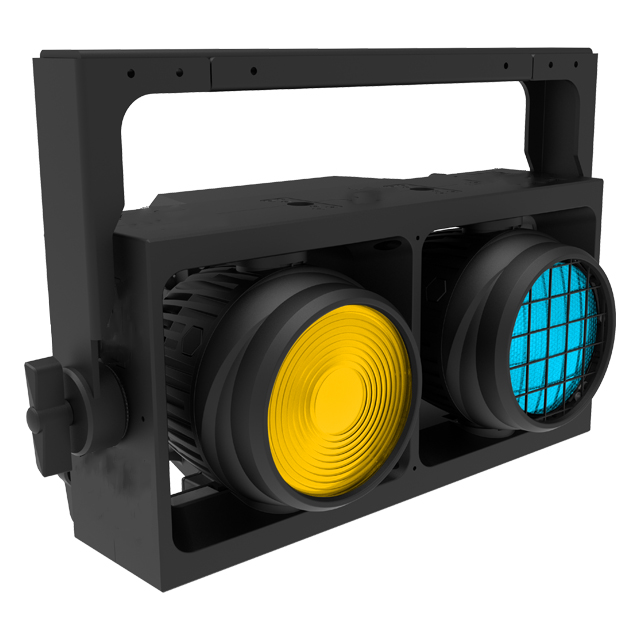

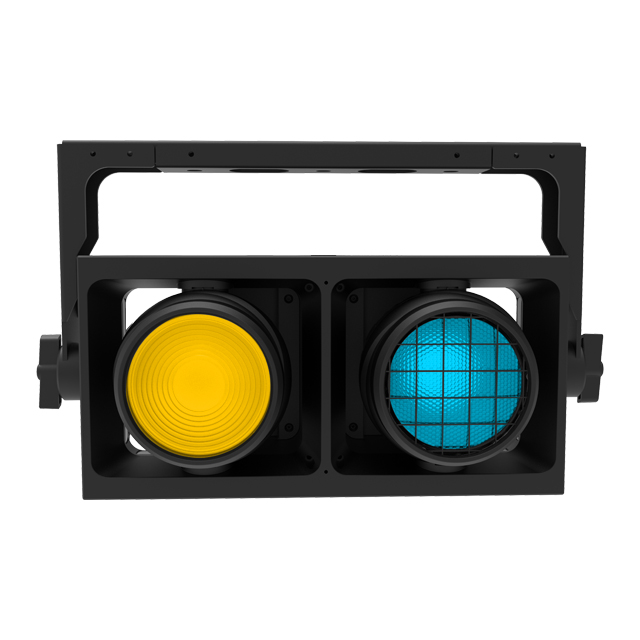

lighting effects. The unique combination of red, amber and warm white colors allows for diverse color mixing and creates various atmospheres. Its blinder function can produce rapid and rhythmic flashes, perfect for stage concerts, parties and other events. Built - in DMX control ensures easy operation and precise lightshow programming. Durable and reliable, this versatile light is a great choice for stage lighting.
AH033
ATON
| LED expected lifetime | 50000H |
| Lightsource | |
| Main Led Panel | 2*300W+Red+Amber+WW |
| Auxiliary Led Panel | 2*24*2W CW+WW |
| Color Temperature (White) | 2880K |
| CRI | 81 |
| Efficacy | 1532.18lm/W |
| Light output all LEDs on(Main+Auxiliary) | 39094 LM |
| Light output all LEDs on(Auxiliary) | 30016 LM |
| Lux @ 2m(Main+Auxiliary) | 11844 LX |
| Lux @ 5m(Main+Auxiliary) | 1895 LX |
| Lux @ 8m(Main+Auxiliary) | 740 LX |
| Lux @ 10m(Main+Auxiliary) | 474 LX |
| Native beam angle(s) | 50° |
| Initial field of view (spot angle) | 93° |
| Color options | Fine sand black(Black-RAL 9004) |
| IK rating | IK07 |
| IP class | IP65 |
| Material | Aluminum magnesium alloy |
| Net dimensions | 495*299*199mm |
| Net weight | 9.51kg |
| Color calibration | 127-255 |
| Dimmer curve | Linear / Square Law /Inverse Square Law / S-Curve |
| Dimming | 0-255% |
| Emulation mode / effect | yes |
| Filters | Magnetic |
| LED panel | |
| Main Led Panel | 2*300W+Red+Amber+WW |
| Auxiliary Led Panel | 2*24*2W CW+WW |
| Strobe | 0-20Hz Adjustable |
| Tilt | Head 40° Whole light 360° |
| Tilt locking system | yes |
| Main Led Panel | 2 segments |
| Auxiliary Led Panel | 32 segments |

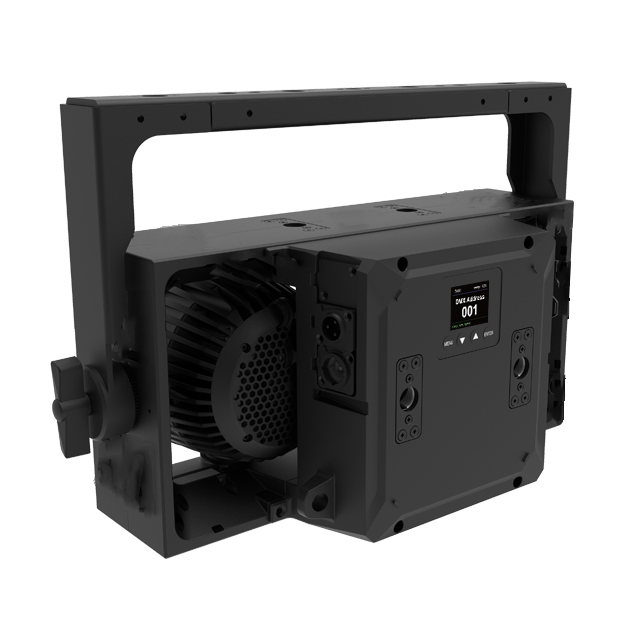

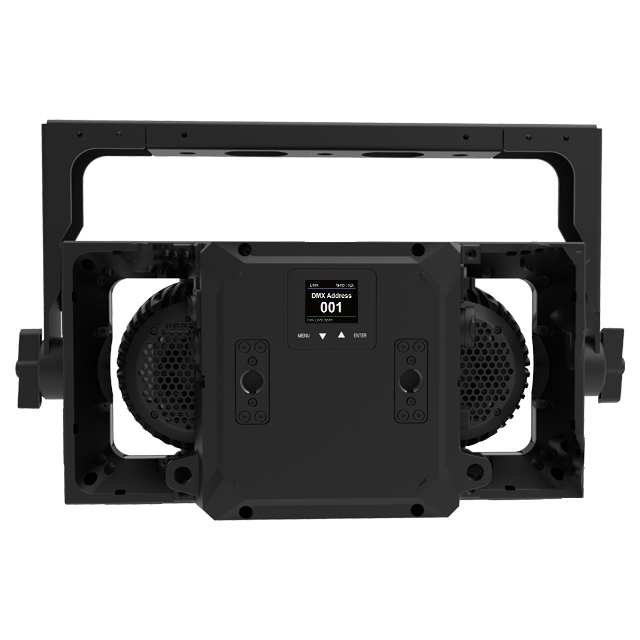

| Screen Type | LCD Touch Screen |
| Electrical | |
| Electrical protection | (O.L.P)/(SHORT)/(O.V.P)/(O.T.P)/Input over-under protection |
| Input voltage, absolute max. Rating | 100~240VAC 50~60Hz |
| Input voltage, nominal | 100V~240VAC 50~60Hz |
| Max inrush current 230V AC | Cold start 60A/230VAC |
| Total power | 700W |
| LED PWM Frequency | 1KHz ~ 18KHz |
| Max power consumption | 700W |
| Constant power consumption | 285W |
| Power factor | 0.96(220V) |
| Power Supply Unit | (O.L.P)/(SHORT)/(O.V.P)/(O.T.P)/Input over-under protection |
| Standby power consumption | 16W |
| Maximum Connections | 4 pcs @220V |
| 16-bit control | yes |
| Cabled DMX | 3 pin |
| DMX channels | 1/2/4/5/8/10/13/P8/P16/P32/P34/P40/P42 |
| DMX modes | 13 |
| Protocol | USITT DMX512A, RDM ANSI E1.20 |
| Setting and addressing | Manual settings at the display buttons/RDM |
| DMX data in/out | Seetronic-3PIN waterproof DMX output(K3F2C-W-B) / input(J3F2C-W-B) |
| Power Connection | Seetronic-waterpeoof Power input(SAC3MPX-LY) / output(SAC3FPX-LY) |
| Power Input/Output Connector | Seetronic-Waterproof Power Supply Output Black-SAC3FX |
| Cable Length (power) | European single head waterproof power cable（H0R07) 1.5m*2.5mm² 26mm outer skin, 5mm half-skinned with three-colour thread. |
| Cable Length (DMX) | 3PIN waterproof DMX cable, L=65CM, both ends half peeled 2CM |
| Max output power | Input: 9A@220VAC; Output: 2A@12V / 14A@48V |
